Specifications

Below are the FINAL race specifications for the 1973 Pegasus-Vincent & 1980 Pegasus-Norton...COMING SOON..............Downloadable Excel Spreadsheets with comprehensive details.

Pegasus-Vincent

Specifications

Engine Vincent V-Twin 1458cc - Never Raced
Supercharger Modified Shorrock C142B
Transmission Single Speed Direct Drive
Clutch Norton/Chinn - Baskerville Plates
Ignition 2 x Speedway BTH Magnetos
Con Rods STD Vincent
Flywheel Vincent, Modified for 1¼” Alpha Pin & 105mm Stroke
Pistons Produced from Manx Norton Slipper Blanks - 90mm
Piston Rings Manx Norton
Camshafts Vincent, Steilite MK2
Valves STD Vincent, Modified to fit Split Collets
Valve Springs W&S
Pushrods STD Vincent
Spring Retainers Light Alloy
Fuel System Chinn Gravity Fed 2" Injector
Frame Team Design - 3” Top Tube for Fuel
Wheelbase 64"
Forks Ducati
Front Wheel Ducati Hub, Alloy Rim 2.75"x18"
Rear Wheel Vincent Hub, Alloy Rim 4"x18"
Rear Tyre 4"x18" M&H Slick
Brakes Ducati (Front) Vincent Finned (Rear)
Weight 340 Ibs
Fuel Content 50% Nitro Methane
Paint Phil Smith

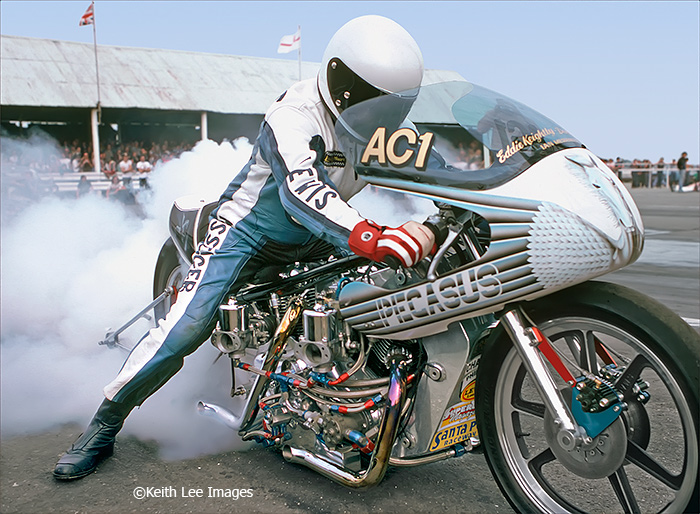

Pegasus-Norton

Specifications

Engines 2 x 828cc Nortons - 1656cc
Superchargers 2 x Modified Shorrock C75B
Transmission Two Speed Lenco
Clutch Miller Baskerville Slider
Ignition Modified BTH Racing Magnetos
Con Rods Carrillo (Steel)
Flywheels Chinn (Steel) Special
Pistons Venolia 7:1 Forged
Piston Rings Total Seal/Childs & Albert
Camshafts Crane F258 Fuel Cam
Valves Manley Stainless
Valve Springs W&S
Spring Retainers Crane Titanium
Pushrods Crane Titanium
Fuel System SU Carbs (minus floats) & Hilborn Pump
Frame T45, Team Manufacture
Wheelbase 66 Inches
Forks Metal Profile
Front Wheel 17" Offenstant
Rear Wheel 5.5 x15" Cragar Spun Aluminium
Rear Tyre 6 x15 M&H Slick
Brakes Hurst Airheart
Weight 580 Ibs
Fuel Content 75% Nitro Methane
Paint Ray Mumford
